The below instructions outline how to make changes to a mast for a structure you have already placed.
Edit a Mast
Step 1: Navigate to the 'Structures' section of the Lineardraft toolbar
Step 2: Click the 'Adjust' button
Step 3: Click the structure you would like edit

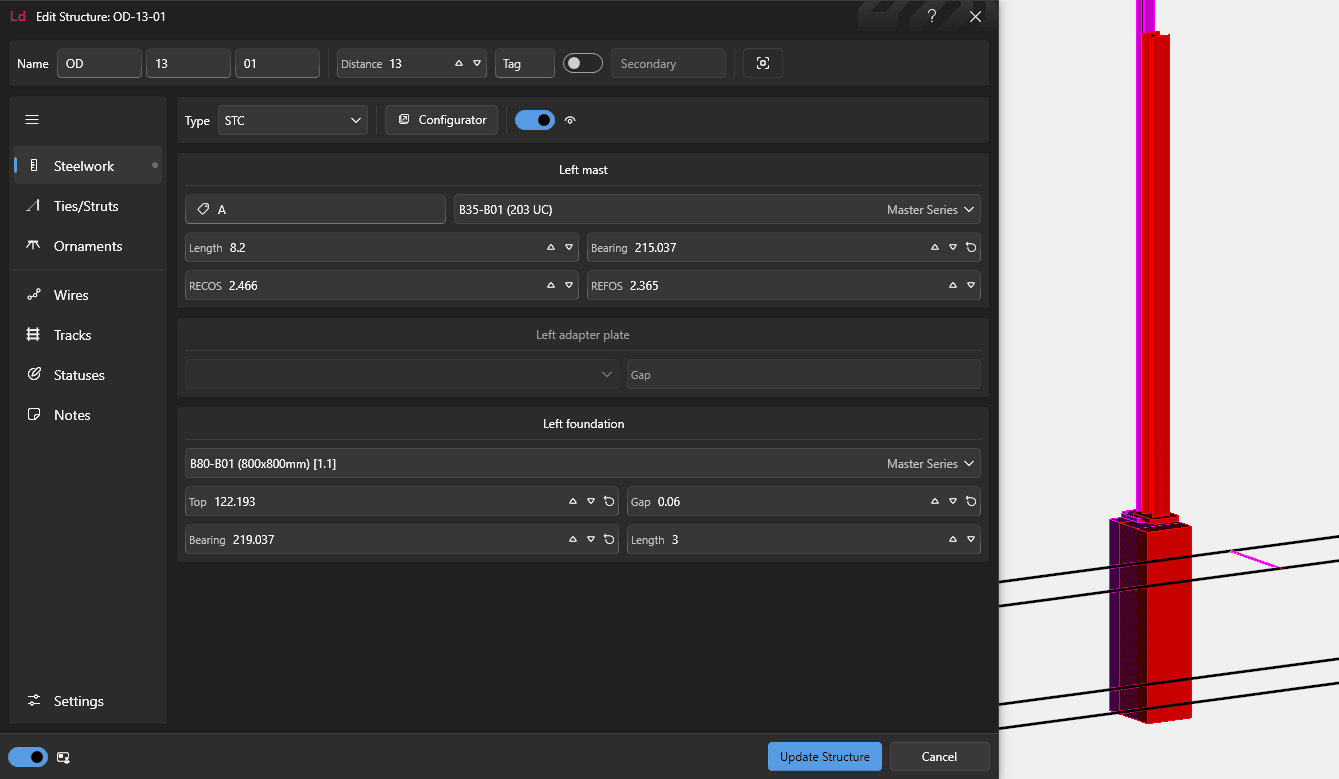

This will open the 'Edit Structure' window.
Step 4: Configure the mast
You can change the structure support label, mast type, length, bearing, RECOS, and REFOS as applicable in the 'Edit Structure' window.
More info: For more information on all aspects of the 'Edit Structure' window please read this article or for more information on adjusting the mast bearing, please see this article.
Step 5: Click 'Confirm'
This will close the 'Edit Structure' window.
Edit a Mast with Equipment
Step 1: Navigate to the 'Structures' section of the Lineardraft toolbar
Step 2: Click the 'Adjust' button
Step 3: Click the structure you would like edit
This will open the 'Edit Structure' window.
Step 4: Configure the mast type, if necessary
Selecting the drop down menu to select a new mast type will open the 'Configure Steelwork' window. From there you can select a new mast without affecting your wire supports or backties. Learn more here.
Step 5: Review or adjust any automatic adjustments to equipment
If the equipment you have attached to your mast is no longer applicable with your new mast choice, Lineardraft may have automatically updated to similar piece of equipment. You can view and adjust the new equipment in the drop down menus.
More info: To learn more about how to use the steelwork configurator, see here.
Step 6: Click 'Confirm'
This will close the 'Configure Steelwork' window.
Step 7: Continue to configure the mast
You can change the structure support label, length, bearing, RECOS, and REFOS as applicable in the 'Edit Structure' window.
More info: For more information on all aspects of the 'Edit Structure' window please read this article, or for adjusting the mast bearing, please see this article.
Step 8: Click 'Confirm'
This will close the 'Edit Structure' window.
